臺灣Sigma Top竑源精機CNC高精度CAM外圓磨床 SCS-2040B
SCS-2040B （滾珠螺桿傳動/Ballscrew transmission）
SCS-2040L（X軸線性馬達驅動/Linear motor drive on X-axis）
-
液靜壓式砂輪主軸Hydrostatic type wheel spindle
-
標準圓度≤0.0015mm Standard roundness ≤ 0.0015mm
-
表面粗度≤Ra0.2 Surface roughness ≤ Ra0.2
SCS-3205
X軸（線性馬達驅動/Linear motor drive）
Z，C軸（伺服馬達驅動/Servomotor drive）
-
液靜壓式砂輪主軸Hydrostatic type wheel spindle
-
圓度≤0.002mm Roundness ≤0.002mm
-
曲線輪廓度≤0.004mm Curve contour accuracy≤0.004mm

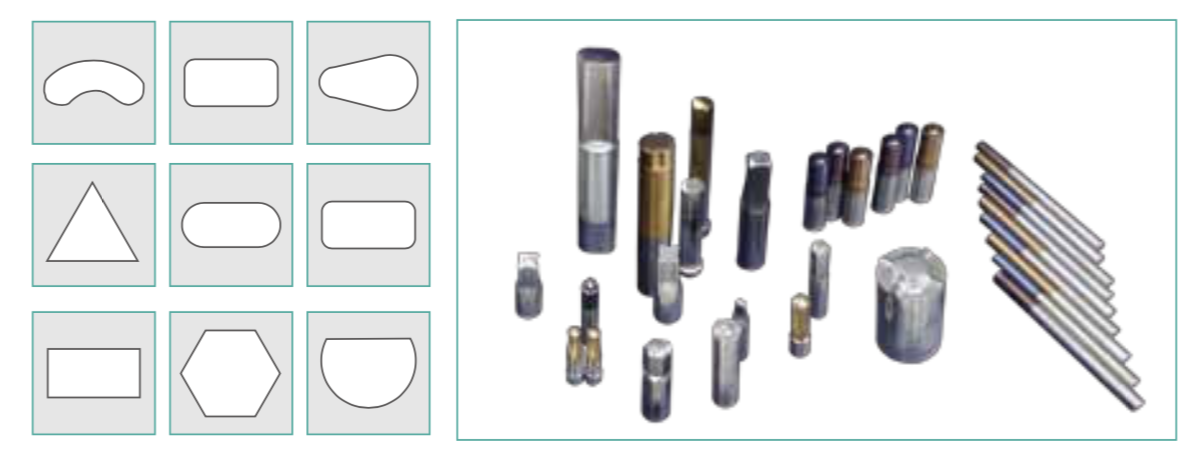

適用研磨工件Applicable Grinding Parts:
偏心軸/凸輪/異形工件/沖頭
Applicable Grinding Parts:Eccentric shafts / Cams / Profiled parts / Punches
|
規格SPECIFICATION |
SCS-2040B |
SCS-2040L |
SCS-3205 |
工作能力
Capacity |
兩頂尖孔最大距離 |
Distance between centers |
400 mm |
500 mm |
|
工作臺最大旋徑 |
Swing over table |
200mm |
320 mm |
|
最大承受重量 |
Max. load of centers |
80 kg |
100 kg |
|
最大加工直徑. |
Max. grinding diameter |
190 mm |
300 mm |
系統規格
Control system |
西門子 |
Siemens |
- |
- |
主軸臺（頭架）
Work Spindle |
主軸驅動 |
Spindle drive |
D.D MOTOR |
D.D MOTOR |
|
鼻端尺寸 |
Spindle nose specif. |
A2-4 |
A2-6 |
|
回轉度 |
Swivel angle |
固定式Fixed |
固定式Fixed |
|
通孔徑 |
Thru-hole diameter |
37mm |
45mm |
Head
尾座 |
主軸驅動 |
Quill drive |
油壓（選配）Hyd.（Opt.） |
油壓（選配）Hyd.（Opt.） |
|
頂尖 |
Center taper |
MT4 |
MT4 |
|
回裝角度 |
Swivel angle |
固定式Fixed |
固定式Fixed |
|
行程 |
Travel |
32mm |
32 mm |
砂輪進刀
（縱向進給X軸
Wheel Feed
(Long.Feed
X-axis) |
X軸進給速度 |
X-axis feed rate |
0.1~6m/min |
0.1~6m/min |
|
X軸行程 |
X-axis travel |
180 mm |
230mm |
|
X軸定位精度 |
X-axis positioning accuracy |
≤0.003mm |
≤0.003mm |
|
X軸重復定位精度 |
X-axis repeatabilty |
≤0.002mm |
≤0.002 mm |
|
最小設定單位 |
Min. setting unit |
0.0001 mm |
0.0001mm |
|
X軸進給控制精度 |
X-axis feed accuracy |
0.001mm |
0.001mm |
|
砂輪尺寸 |
Wheel sizes |
405 mm x MAX70mm x47 mm |
600 mmx MAX100 mmx304.8mm |
|
砂輪線速度 |
Linear speed of wheel |
45m/s |
45m/s/80m/s(Opt.) |
工作臺
（橫向進給Z軸]
Table
(Cross Feed
Z_axis) |
Z軸方向進給速度 |
Z-axis feed rate |
0.1~6m/min |
0.1~6m/min |
|
Z軸方向最小脈沖量 |
Min. pulse equivalent on Z-axis |
0.001mm |
0.001mm |
|
Z軸方向行程 |
Z-axis travel |
650mm |
750mm |
|
Z軸進給控制精度 |
Z-axis feed accuracy |
≤0.003 mm |
≤0.003 mm |
|
Z軸定位精度 |
Z-axis positioning accuracy |
≤0.005 mm |
≤0.005 mm |
|
Z軸重復定位精度 |
Z-axis repeatability |
≤0.003 mm |
≤0.003 mm |
馬達功率
Motor |
砂輪主軸伺服馬達 |
Wheel spindle servomotor |
5KW |
10 KW |
|
工作主軸伺服馬達 |
Work spindle servomotor |
1.5 KW |
1.5 KW |
|
X軸伺服馬達 |
X-Axis servomotor |
1.5 KW |
2700N（直線電機） |
3400N（直線電機） |
|
Z軸伺服馬達 |
Z-Axis servomotor |
1.5 KW |
1.5KW |
|
冷卻液馬達 |
Coolant motor |
0.2KW |
0.2 KW |
|
油壓馬達 |
Hyd. motor |
1.5 KW |
1.5 KW |
機床占地
Machine
Dimensions |
機器尺寸 |
Machine dimensions |
2730 mmx2500 mmx 1980 mm |
3450mmx2500 mmx1980 mm |
|
凈重 |
Net weight |
3350 KG |
4300 KG |
|
毛重 |
Gross weight |
3600 KG |
4500 KG |
