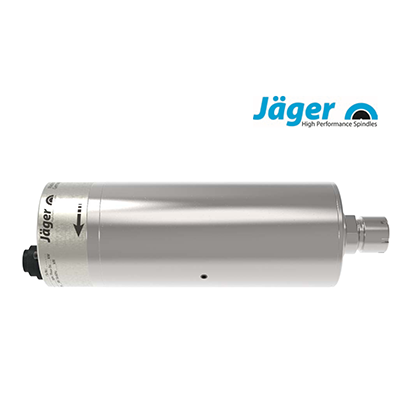

HF-Spindle for high-speed milling, -grinding, -drilling, -engraving C80-M430.03 S15 產(chǎn)品編號(hào) 11205008
Product details：
HF-Spindle for high-speed milling, -grinding, -drilling, -engraving
C80-M430.03 S15
產(chǎn)品編號(hào) 11205008
Technical Specifications
|
Steel ball bearing (pcs) |
2 |
|
Lifetime lubricated |
maintenance free |
|
Frequency |
500 Hz |
|
Motor poles (pairs) |
1 |
|
Rated Rotation Speed |
30,000 rpm |
|
Rated Power (Pmax/5s) |
4.5 kW |
|
Rated Power (S6-60%) |
2.6 kW |
|
Rated Power (S1-100%) |
2 kW |
|
Voltage (Pmax/5s) |
200 V |
|
Voltage (S6-60%) |
200 V |
|
Voltage (S1-100%) |
200 V |
|
Current (Pmax/5s) |
20 A |
|
Current (S6-60%) |
11 A |
|
Current (S1-100%) |
8.9 A |
|
Motor protection |
PTC 130°C |
|
Housing |
Stainless steel |
|
Housing diameter |
80 mm |
|
Cooling |
Liquid cooled |
|
Sealing Air |
yes |
|
Protection category |
IP54 |
|
Tool Change |
Manual tool change |
|
Collet type |
ER 20
Optional accessories |
|
Clamping range |
13 mm ( 33/64" ) |
|
Direction of motion |
Clockwise |
|
Coupler plug |
7-pin
(Amphenol C16-1) |
|
Weight |
5.5 kg |
|
Concentricity |
<2 µ |
|
